Abstract This study explores the integration of industrial robots and electrical automation technology, emphasizing their practical applications and synergistic benefits. Through a case analysis of H Enterprise, a technology-driven energy-saving company, this paper demonstrates how electrical automation enhances industrial robot capabilities in technical innovation, precision manufacturing, and autonomous learning. Additionally, it investigates the application of industrial robots in daily operations, electrical control systems, and fault diagnosis within electrical automation engineering. The research highlights the economic and technological imperatives of this integration, underscoring its role in boosting productivity, reducing costs, and driving industrial scalability.
Keywords: Industrial robot; Electrical automation technology; Precision manufacturing; Autonomous learning; Fault diagnosis
1. Introduction
As the “crown jewel of manufacturing,” industrial robots have emerged as a pivotal indicator of a nation’s technological and manufacturing prowess. Governments worldwide, including China, have prioritized their development through policies such as the “Robot+” Application Action Implementation Plan and Made in China 2025. Concurrently, electrical automation technology—enabling autonomous system operation with minimal human intervention—has become indispensable across industries. This study aims to analyze the practical synergies between industrial robots and electrical automation, leveraging case-based insights from H Enterprise to illustrate their combined impact on modern industrial processes.
2. Industrial Robots: Fundamentals and Evolution
2.1 Definition and Core Characteristics
Industrial robots are multifunctional, multi-joint mechanical systems designed for automation across industries. Key characteristics include:
- Programmability: Adaptability to predefined tasks through software coding.
- Autonomy: Capability to execute repetitive tasks without continuous human supervision.
- Sensitivity: Integration of sensors (e.g., vision, force) for environmental interaction.
Their evolution spans:
- 1950s–1960s: Early models (e.g., Unimate) performed basic repetitive tasks.
- 1980s–2000s: Widespread adoption with advancements in sensor technology and computing.
- Post-2010: Integration with AI and IoT, enabling smarter, more adaptive systems.
By 2023, China’s industrial robot industry exceeded ¥100 billion in revenue, reflecting exponential growth .
2.2 Technical Limitations of Traditional Industrial Robots
Early robots faced constraints:
- Limited Flexibility: Rigid adherence to pre-programmed sequences, unable to adapt to dynamic environments.
- Manual Intervention Dependence: Required human oversight for task changes or error resolution.
- Lack of Intelligence: No autonomous decision-making or learning capabilities.
Electrical automation technology addresses these gaps by enhancing control precision, real-time data processing, and system adaptability.
3. Electrical Automation Technology: Principles and Applications
3.1 Core Concepts
Electrical automation technology refers to the use of electrical systems and control algorithms to automate processes, reducing human involvement. Key components include:
- Sensors: Monitor physical parameters (e.g., temperature, pressure).
- Controllers: Process sensor data and execute commands (e.g., PLCs, microprocessors).
- Actuators: Convert control signals into mechanical actions (e.g., motors, valves).
Mathematically, a basic feedback control system can be modeled as:\(Y(s) = \frac{G(s)}{1 + G(s)H(s)} R(s)\) where \(G(s)\) is the plant transfer function, \(H(s)\) is the feedback transfer function, \(R(s)\) is the reference input, and \(Y(s)\) is the output. This framework underscores how automation ensures system stability and accuracy .
3.2 Industrial Significance
- Productivity Enhancement: 24/7 operation with minimal downtime.
- Safety Improvement: Reduces human exposure to hazardous environments (e.g., high voltage, toxic substances).
- Cost Reduction: Lower labor costs and minimized error rates.
China’s “14th Five-Year Plan” emphasizes electrical automation as a cornerstone of industrial modernization, aligning with global trends toward smart manufacturing .

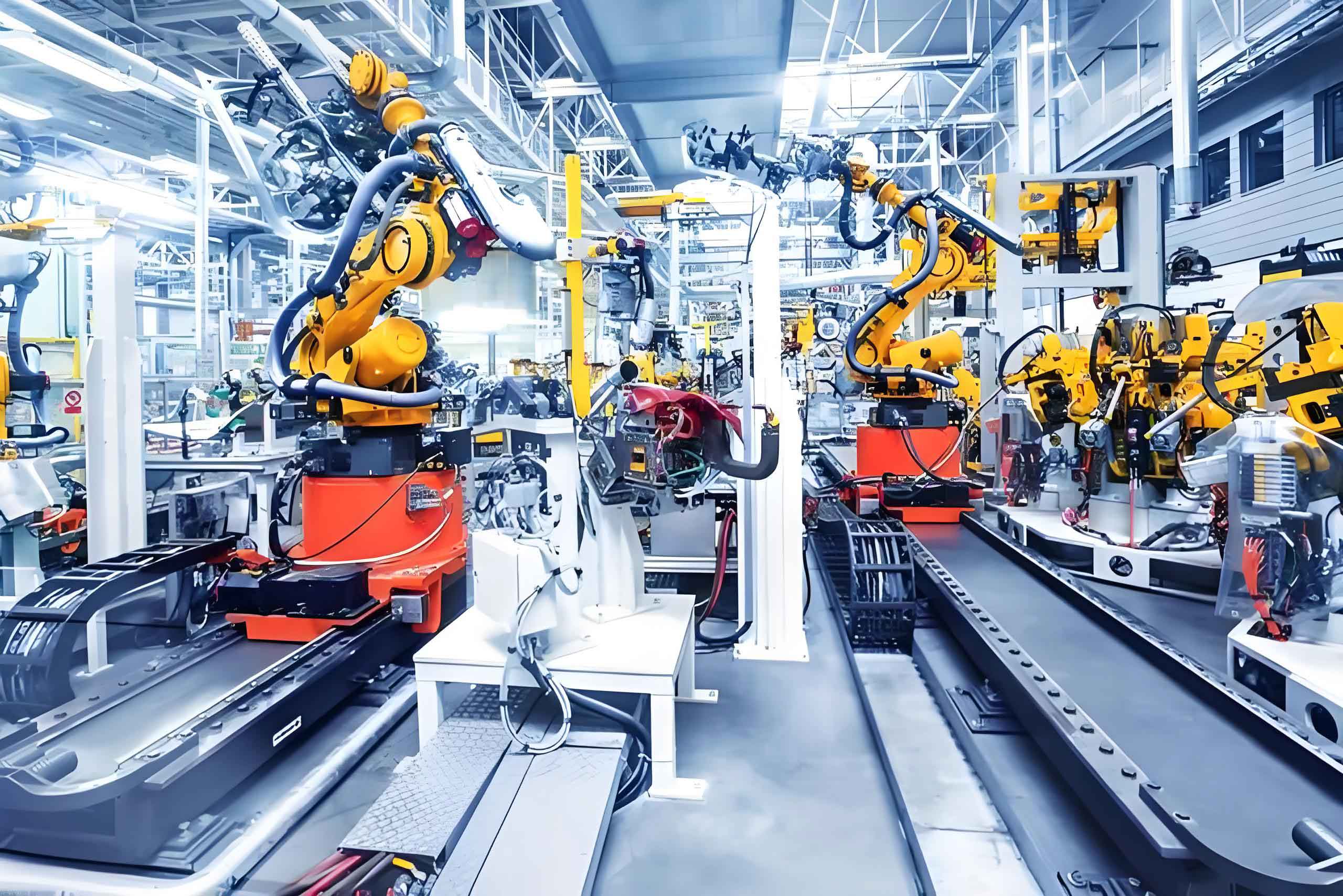

4. Synergy Between Industrial Robots and Electrical Automation: Case Study of H Enterprise
H Enterprise, a leading innovator in power quality management, has integrated industrial robots and electrical automation to optimize production. Below is a detailed analysis of their applications.
4.1 Technical Breakthroughs in Industrial Robots
Electrical automation drives key advancements:
- Advanced Sensing: Integration of vision sensors (e.g., CCD cameras) and LiDAR enables robots to detect environmental changes. For example, in H Enterprise’s assembly lines, robots use RGB-D sensors to identify component positions with ±0.1mm accuracy .
- Autonomous Navigation: SLAM (Simultaneous Localization and Mapping) algorithms, combined with GPS and inertial measurement units (IMUs), allow robots to navigate complex layouts. The control equation for path planning is:\(\dot{\mathbf{x}} = u(\mathbf{x}, t), \quad \mathbf{x}(t_0) = \mathbf{x}_0\) where \(\mathbf{x}\) is the state vector, u is the control input, and t is time.
- Machine Learning Integration: Reinforcement learning (RL) algorithms enable robots to optimize tasks like pick-and-place operations. H Enterprise’s robots achieve a 30% efficiency boost through RL-based trajectory optimization .
4.2 Precision Manufacturing via Electrical Automation
In H Enterprise’s component fabrication, electrical automation ensures precision:
- Open-System Control: A modular architecture using Ethernet/IP communication allows real-time adjustment of parameters like motor speed and torque.
- Encoder-Based Feedback: Rotary encoders (resolution: 20-bit) provide position feedback, enabling closed-loop control with error margins < 0.05%.
- Mass Production Efficiency: Automated assembly lines using SCARA robots achieve a cycle time of 6 seconds per unit, compared to 18 seconds via manual labor—a 66% improvement .
Table 1: Traditional vs. Automated Component Manufacturing
| Parameter | Traditional Method | Automated with Industrial Robots | Improvement Rate |
|---|---|---|---|
| Production Speed (units/h) | 200 | 600 | +200% |
| Defect Rate | 3.2% | 0.8% | -75% |
| Labor Cost per Unit | $15 | $5 | -67% |
4.3 Enhancing Autonomous Learning Capabilities
H Enterprise employs cloud-integrated robots for adaptive processing:
- Data-Driven Classification: Robots analyze 50,000+ component images daily using CNNs, achieving 99.2% classification accuracy for defect detection .
- Edge Computing Integration: Local servers process real-time data, reducing latency to <50ms for critical decisions (e.g., tool replacement).
- Transfer Learning: Pre-trained models on similar tasks reduce training time for new components by 40%.
5. Industrial Robot Applications in Electrical Automation Systems
5.1 Daily Operations: Assembly, Inspection, and Hazardous Tasks
5.1.1 Assembly Tasks
Robots excel in repetitive, high-precision assembly:
- Process Flow:
- Task Planning (CAD-based simulation)
- Part Recognition (2D/3D vision)
- Pick-and-Place (delta robots with 0.02mm repeatability)
- Quality Check (laser profilometry)
In H Enterprise’s PCB assembly line, SCARA robots achieve 99.9% soldering accuracy, compared to 92% via manual soldering .
5.1.2 Inspection and Testing
Robotic inspection systems use:
- Non-Contact Sensors: Infrared thermography for temperature mapping.
- AI Algorithms: Anomaly detection via autoencoders to identify circuit defects.
- Autonomous Testing: Robots apply test voltages (up to 10kV) in isolated environments, eliminating human risk .
Table 2: Robotic vs. Manual Inspection Metrics
| Metric | Manual Inspection | Robotic Inspection |
|---|---|---|
| Throughput (units/h) | 120 | 450 |
| False Positive Rate | 5% | 1.2% |
| Mean Time to Detect | 15 minutes | 30 seconds |
5.1.3 Hazardous Environment Operations
In high-risk sectors (e.g., nuclear power), H Enterprise’s robots feature:
- Explosion-Proof Design: IP68-rated enclosures for chemical and thermal resistance.
- Remote Operation: 5G-enabled telepresence with <100ms latency.
- Autonomous Emergency Response: Pre-programmed protocols for leak detection or fire suppression .
5.2 Electrical Control Systems
5.2.1 Robot 本体 Design (Robot Body Design)
Key design considerations:
- Kinematic Modeling: Denavit-Hartenberg (DH) parameters define robot geometry:\({}^{i-1}T_i = \begin{bmatrix} \cos\theta_i & -\sin\theta_i \cos\alpha_i & \sin\theta_i \sin\alpha_i & a_i \cos\theta_i \\ \sin\theta_i & \cos\theta_i \cos\alpha_i & -\cos\theta_i \sin\alpha_i & a_i \sin\theta_i \\ 0 & \sin\alpha_i & \cos\alpha_i & d_i \\ 0 & 0 & 0 & 1 \end{bmatrix}\) where \(\theta_i, \alpha_i, a_i, d_i\) are joint parameters .
- Drive Systems: Servo motors with harmonic drives achieve 0.01° positioning accuracy.
- Vibration Damping: PID control with feedforward compensation reduces overshoot to <5%.
5.2.2 Core Controllers
H Enterprise uses dual-core controllers:
- Primary Core: Real-time OS (e.g., QNX) for motion control (cycle time: 1ms).
- Secondary Core: Linux for AI processing and network communication.
- EtherCAT Protocol: Enables synchronized control of up to 128 axes with sub-microsecond precision .
5.2.3 Distributed Control Systems
A hierarchical architecture manages complex workflows:
- Supervisory Layer: PLCs coordinate robot cells and conveyor systems.
- Control Layer: Edge computers handle real-time data from sensors.
- Field Layer: Smart actuators (e.g., servo valves) execute commands.
This structure reduces system latency by 40% compared to centralized control .
5.3 Fault Diagnosis and Maintenance
5.3.1 Data Acquisition and Analysis
Robots equipped with IoT sensors monitor:
- Vibration Analysis: Accelerometers detect motor anomalies via Fast Fourier Transform (FFT):\(X(f) = \int_{-\infty}^{\infty} x(t) e^{-j2\pi ft} dt\) Deviations from baseline spectra indicate potential faults .
- Current Monitoring: Amperometric sensors identify overloads in electrical circuits.
5.3.2 Predictive Maintenance with ML
H Enterprise employs LSTM networks to predict component failures:
- Training Data: 100,000+ hours of operational data from motors and drives.
- Performance Metrics: 92% accuracy in predicting bearing failures 7 days in advance .
5.3.3 Remote Maintenance Capabilities
- AR-Assisted Repair: Technicians use HoloLens to overlay repair instructions on robots.
- OTA Updates: Firmware upgrades via secure VPNs, reducing downtime by 80%.
- Autonomous Self-Diagnosis: Robots isolate faulty modules and request replacement parts via IoT interfaces .
6. Economic and Technological Impacts
6.1 Cost-Benefit Analysis
Table 3: ROI of Industrial Robot Integration at H Enterprise
| Cost Component | Initial Investment ($) | Annual Savings ($) | Payback Period (years) |
|---|---|---|---|
| Robot Hardware | 800,000 | 350,000 | 2.3 |
| Software Development | 200,000 | 120,000 | 1.7 |
| Training | 50,000 | 30,000 | 1.7 |
6.2 Technological Advancement
- Industry 4.0 Alignment: Integration with big data and cloud platforms enables predictive analytics and digital twins.
- Sustainability: Energy-efficient robots reduce H Enterprise’s carbon footprint by 25% through optimized motor control .
7. Challenges and Future Directions
7.1 Current Challenges
- Skill Gap: Shortage of engineers proficient in both robotics and electrical automation.
- System Complexity: Integration of heterogeneous systems (e.g., legacy PLCs with AI models) requires standardization.
- Cybersecurity Risks: Connected robots face vulnerabilities to cyber threats (e.g., ransomware).
7.2 Future Research Agenda
- AI-Driven Automation: Development of self-optimizing robots using deep reinforcement learning.
- Edge-AI Integration: Deploying neural networks on robotic edge devices for real-time decision-making.
- Human-Robot Collaboration: Safe co-working spaces with force-torque sensors and collision avoidance algorithms.
Mathematically, future robot control may adopt model predictive control (MPC):\(\min_u \sum_{k=1}^N \|x(k) – x_{\text{ref}}(k)\|_Q^2 + \|u(k-1)\|_R^2\) subject to physical constraints, enabling optimal trajectory planning in dynamic environments.
8. Conclusion
This study demonstrates that the integration of industrial robots and electrical automation technology is both an economic necessity and a technological imperative. Through case insights from H Enterprise, we have seen how these technologies enhance productivity, precision, and safety across manufacturing processes. While challenges like skill gaps and system complexity persist, the future promises greater autonomy, AI integration, and sustainability. As a researcher in this field, I advocate for continued investment in R&D to unlock the full potential of this synergy, driving industrial innovation toward smarter, more efficient systems.
